製品詳細
起源の場所: チェジアン,中国
ブランド名: JG
証明: FDA certificate
モデル番号: 338
支払いと送料の条件
最小注文数量: 1PCS
価格: USD
パッケージの詳細: 白い箱
受渡し時間: 3~10DAYS
支払条件: T/T,ウェスタン・ユニオン,マネー・グラム
供給の能力: 1000個
製品名: |
単面車用機械用シール |
サイズ: |
25~120mm |
適用する: |
カーテックスSNシールを交換する |
HSコード: |
8484200090 |
金属部分: |
SS304、SS316、HAST C |
圧力: |
2.5Mpaまで |
温度: |
-40~220°C |
スピード: |
10m/s |
製品名: |
単面車用機械用シール |
サイズ: |
25~120mm |
適用する: |
カーテックスSNシールを交換する |
HSコード: |
8484200090 |
金属部分: |
SS304、SS316、HAST C |
圧力: |
2.5Mpaまで |
温度: |
-40~220°C |
スピード: |
10m/s |

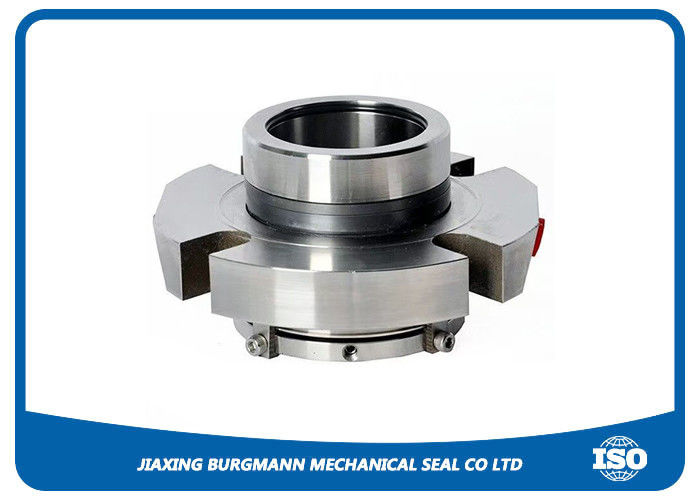

Single Face Carriage Mechanical Seal Replace Cartex SN
This heavy-duty single face carriage mechanical seal is designed as a direct replacement for Cartex SN series seals in industrial pumps and mixers. The precision-engineered unit features a robust single seal face configuration with high-grade materials (available in silicon carbide, tungsten carbide, or carbon) to ensure reliable performance in demanding applications.
Operating Limited:
| Shaft diameter | 25~120mm |
| Pressure | up to 2.5Mpa |
| Temperature | -40~220°C |
| Slidingvelocity | 10m/s |
Material:
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316, HAST C |
| Stationary Ring | Car / SIC /TC/Cer |
Advantages:
Direct replacement for Cartex SN series (interchangeable design)
Robust construction with premium-grade materials (SiC, WC, carbon options)
Spring-loaded mechanism ensures constant sealing pressure
Slurry & abrasive media resistant (ideal for harsh environments)
Wide elastomer compatibility (Viton®, EPDM, Nitrile)
Simplified maintenance (easy installation & reduced downtime)
Cost-effective alternative to OEM parts
Temperature & pressure resistant (-20°C to +180°C / up to 10 bar)
Application:
Wastewater treatment pumps
Mining & slurry processing
Chemical processing equipment
Oil & fuel transfer systems
Food & beverage processing (food-grade material options)
Pharmaceutical mixers (GMP-compliant versions)
Power plant cooling systems
Marine & offshore pumping systems
Shipping & Payment Terms:
Port of Loading: Shanghai
Shipping Method: DHL,UPS,FEDEX,TNT, etc
Payment Terms: T/T, Western Union, money gram
Our services:
◆ OEM/ODM orders are available for our factory
◆ Accept customized mechanical seals according to your drawing or requirements
◆ Small quantity is accepted
◆ Provides excellent quality with competitive price
